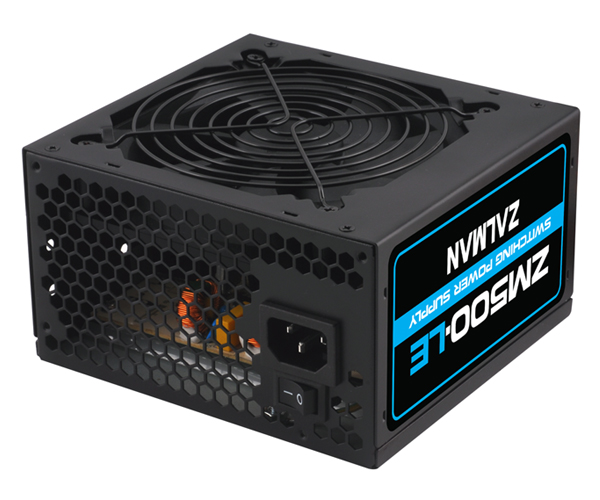

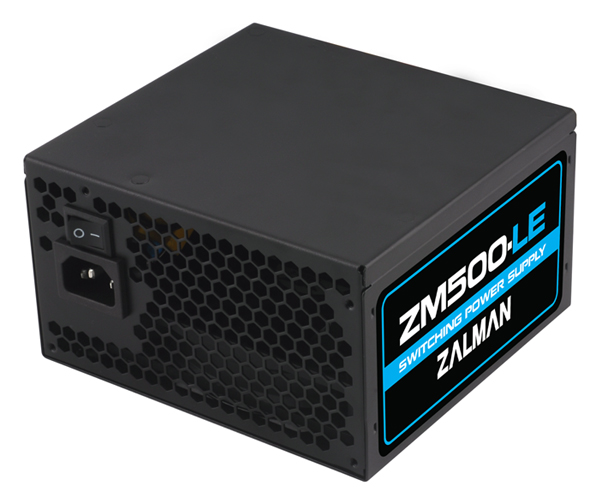

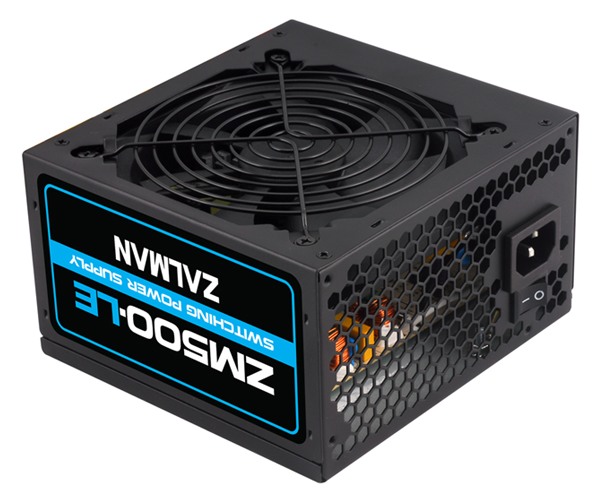

Zalman Power Supply 300-500W series ZM500-LE

Zalman Power Supply 300-500W series ZM500-LE
share

AC Input Range Voltage 115/230VAC Vout Output Load Rating Combined
Power
Frequency 47 ~ 63Hz Imin Imax Ipeak
AC Input Current
(Rated)
115VAC 10A +3.3V 0.1A 18A 120W 500W
230VAC 5A +5V 0.2A 15A
PFC Type None PFC +12V1 0.1A 20A 444W
Power Factor Max 50%
+12V2 0.5A 20A 22A
Inrush Current Limit
(@ Cold start at 25°C)
115VAC Max 100A -12V 0.0A 0.3A 3.6W
230VAC Max 100A +5VSB 0.0A 2.0A 3.0A 10W
Efficiency Max 81% @ 230VAC Ambient Temperature
DC Output
Voltage Regulations
Vout Regulation Range At Full
Load
Operation 0 ~ 40°C
+3.3VDC ±5% +3.14 ~ +3.47V Storage -40 ~ 70°C
+5VDC ±5% +4.75 ~ +5.25V Ambient Humidity
+12V1DC ±5% +11.4 ~ +12.6V Operation 5% ~ 85%RH
+12V2DC ±5% +11.4 ~ +12.6V Storage 5% ~ 95%RH
-12VDC ±10% -10.8 ~ -13.0V Protection Features
+5VSB ±5% +4.75 ~ +5.25V Over Voltage Protection(OVP)
DC Output
Ripple & Noise
Vout Standard Range At Full
Load
Under Voltage Protection(UVP)
+3.3VDC 50mV Short Circuit Protection(SCP)
+5VDC 50mV Over Power Protection(OPP)
+12V1DC 120mV Dimensions
+12V2DC 120mV 140(L) x 150(W) x 86(H) mm
-12VDC 120mV Weight
+5VSB 50mV 1.8kg (Full Package)
